SPT 519 Power Ceramic Caps - MSA

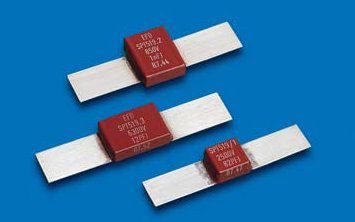

SPT 519 Power Ceramic Caps

Eurofarad


Warning: Attempt to read property "ID" on null in /home/serverde/msa.server57.de/wp-includes/link-template.php on line 394

Warning: Attempt to read property "ID" on null in /home/serverde/msa.server57.de/wp-includes/link-template.php on line 409
SKU: SPT 519 Power Ceramic Caps Categories: , , , , ,
These are made of a ceramic substrate metalized on its two opposite widest surfaces. Their standard dimensions fit to microwave line widths so as to prevent any impedance mismatch due to dimensional factors (other sizes manufactured on request). Their configurations lead to very low inductances. So, for a given capacitance value, their resonance frequency is much higher than the resonance frequency of multilayer ceramic capacitors, thus enabling to achieve as much higher operating frequencies.

MAIN CHARACTERISTICS

Dielectric Ceramic class 1
Technology Varnished multilayer
chips with silver
ribbon leads
Operating temperature – 55°C + 125°C
Temperature coefficient
CR > 18 pF 0 ± 30 ppm/°C
CR ≤ 18 pF 100 ± 30 ppm/°C
Rated voltage URC 550 V - 6 300 V
Test voltage 2 URC
