Single Row Bi-Lobe® Nano-D Connectors - MSA

Single Row Bi-Lobe® Nano-D Connectors

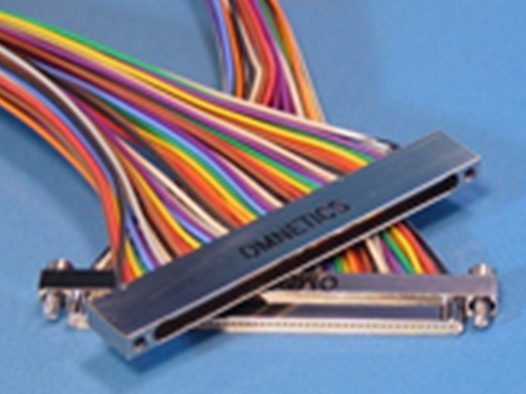

Omnetics Nano-D connectors, at 0.25" pitch, are some of the smallest ruggedized connectors on the market today. Compared to larger Micro-D and D-Subminiature configurations, Omnetics has reduczed size and weight by as much as 4x that of standard Micro-D connectors and 8x that of previous D-Sub footprints.


Warning: Attempt to read property "ID" on null in /home/serverde/msa.server57.de/wp-includes/link-template.php on line 394

Warning: Attempt to read property "ID" on null in /home/serverde/msa.server57.de/wp-includes/link-template.php on line 409
SKU: B-140-000600 Categories: , , , , ,

Available with threaded mounting holes suitable for PCB and flex mounting. These connectors are available in standard sizes ranging from 5 through 51 positions, as well as custom configurations.

Please use the links below for the specifications of the different types:

Electrical Mechanical Specifications

  • Temperature: -55°C to 125°C (200°C with HTE)
  • Durability: 200 Mating Cycles min*
  • Insulator Resistance: 5000 Meg ohms min
  • Voltage Rating (DWV): 250 VAC RMS Sea Level
  • Shock: 100 g`s discontinuties > 10 nanosecond
  • Vibration: 20 g`s discontinuties > 10 nanosecond
  • Thermal Vacuum Outgassing: 1.0% max TML, 0.1% max VCM
  • Contact Resistance: 71 mV Drop @ 1 Amp
  • Current Rating: 1 Amp per contact
  • Mating/Unmating Force: 7oz. (198g) max per contact

Material Specifications

  • Shell Material and Finish:
    Aluminum Shell, Electroless Nickel Plated
    Aluminum Shell, Black Anodized
    Aluminum Shell, Cadmium Plated
    Titanium Shell, Unplated
    Stainless Steel Shell, Passivated
  • Insulator: Liquid Crystal Polymer
  • Pin: Gold Plated BeCu
  • Insulator: LCP per MIL-DTL-83513 or PEEK
  • Socket: Gold Plated Copper Alloy
  • Encapsulant: Epoxy

MIL-DTL-32139

Omnetics Nano-D / Bi-Lobe® Catalogue

Omnetics Nano-D / Bi-Lobe® Ordering Guide

Omnetics Nano-D / Bi-Lobe® Dimensions

Omnetics Nano-D / Bi-Lobe® Accessories & Misc

www.omnetics.com
