High Input Voltage and High Reliability DC/DC Converters - MSA

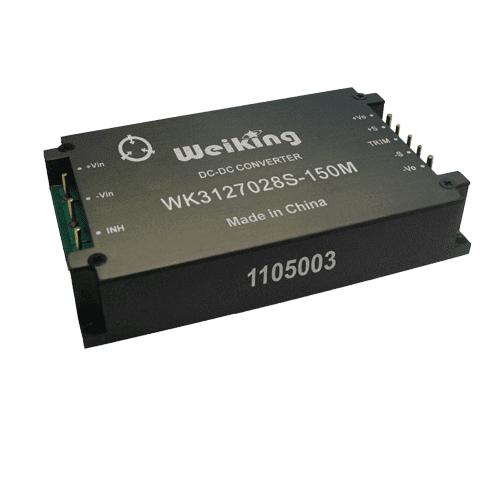

High Input Voltage and High Reliability DC/DC Converters


Warning: Attempt to read property "ID" on null in /home/serverde/msa.server57.de/wp-includes/link-template.php on line 394

Warning: Attempt to read property "ID" on null in /home/serverde/msa.server57.de/wp-includes/link-template.php on line 409
  • Input Voltage range: 160V DC to 400V DC
  • Output Voltage: 12V DC, 15V DC, 28V DC
  • Output Power: 150W
  • Input Voltage transient: 500V/50ms
  • Remote sensing and output voltage trimming function
  • Inhibit function
  • Soft start function
  • Indefinite short circuit protection
  • Optocoupler isolation
  • Case operating temperature (Tc): -55°C to +105°C
  • Apply to electrical system of 270 volts bus voltage
